N63TU3 INTAKE - M550i M850i 750i

Original price $297.00
Original price $297.00 - Original price $297.00
Original price $297.00
Current price $247.00
$247.00 - $247.00
Current price $247.00
  • 30 Day Money-Back Guarantee | IN STOCK

HIGHLIGHTS

• Improved Airflow
• Faster Turbo Spool
• Increased Turbo Sounds
• Easy 30 Minute Installation
• Premium Materials Throughout



PROFILE

The ARM N63TU3 Intake system is designed to improve airflow and increase throttle response on BMW's 3rd generation of the N63 found in the M550i M850i and 750i.  Installing the ARM N63TU3 Intake on your BMW is easy, without any cutting or drilling involved, and only takes about 30 minutes.  The ARM N63TU3 Intake will work perfectly with Stage 1 or Stage 2 tunes.  It is also compatible with the OEM tune.  The photo below is shown with the ARM N63R/N63B Charge Pipes which are not included with the ARM N63TU3 Intake.

N63B N63TU3 Intake


CONSTRUCTION

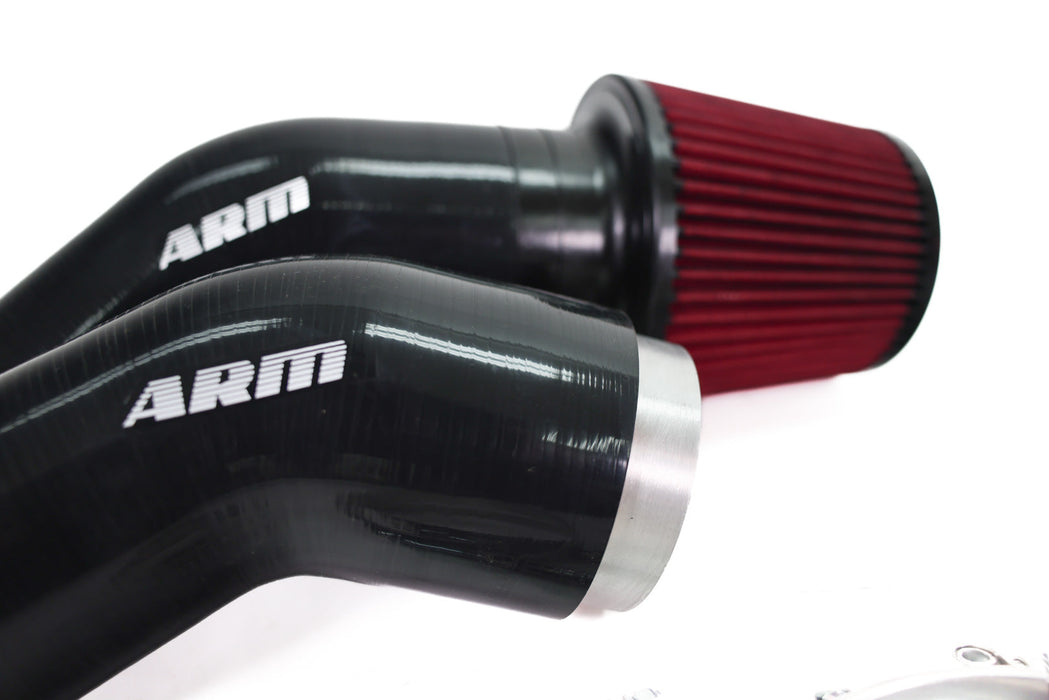

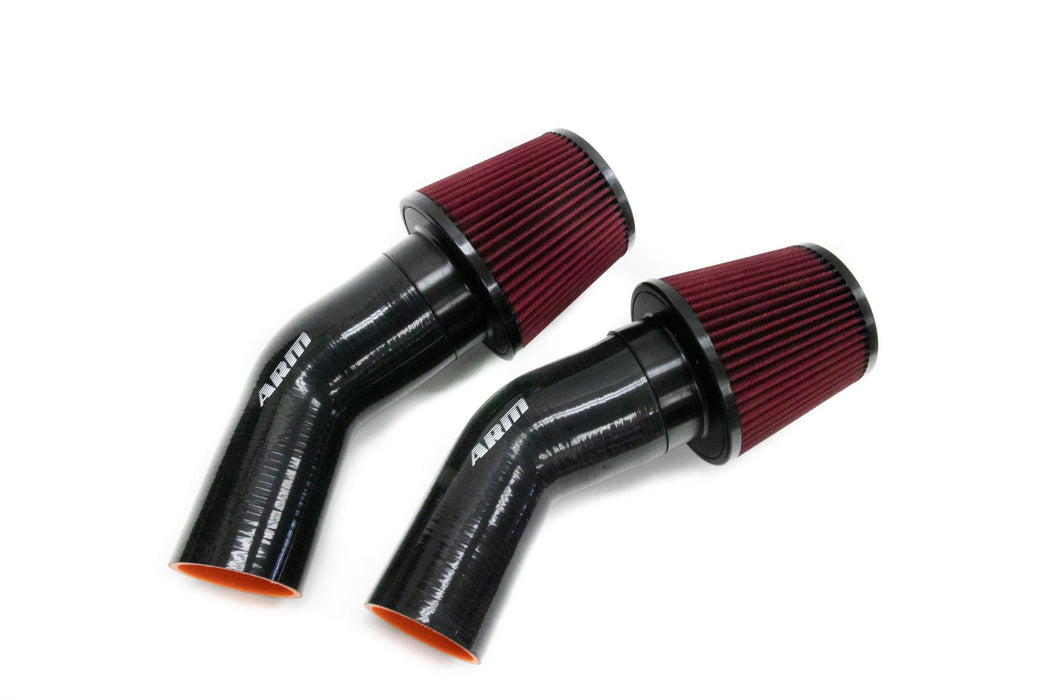

The ARM N63TU3 Intake is made with 6-layer reinforced silicone couplers which have a 3" connection at one end to utilize the factory turbo inlets.  The couplers increase smoothly all the way up to 3.5" at the opposite end where the ARM Dry Filters are installed.  By using silicone couplers as the material for the intake runners, we are able to maximize the size between the OEM turbo inlets and the ARM Air Filters while retaining the strut braces. Since the runner between the filter and turbo inlets must pass though the strut braces, using a silicone material prevents wear and ratting found with aluminum runners.

N63TU3 Intake

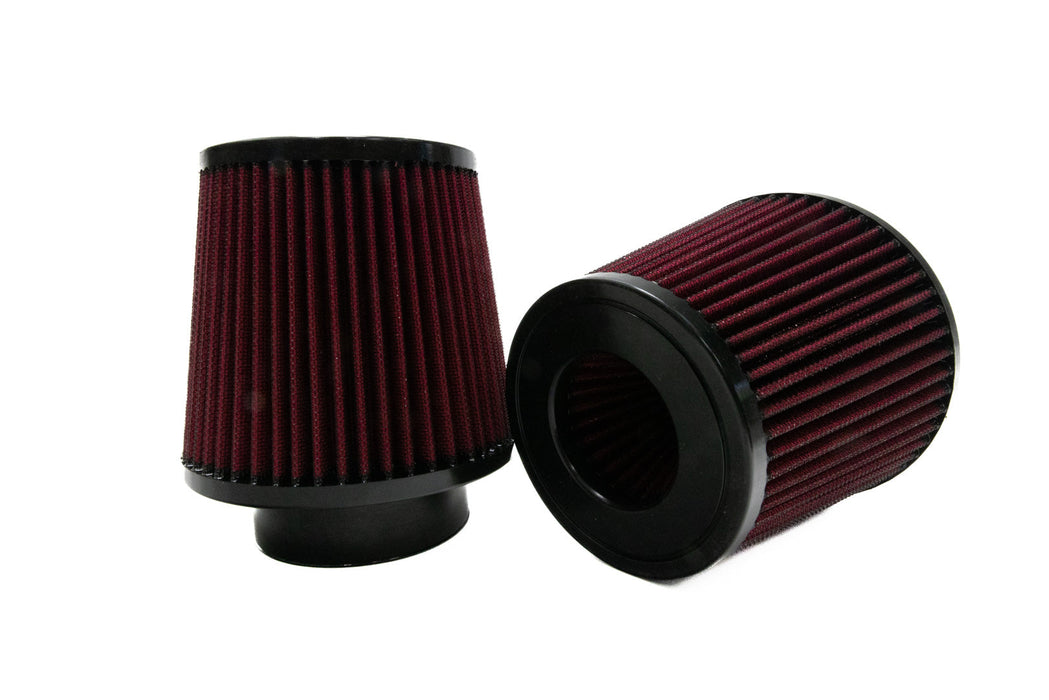

The ARM Dry Air Filters included in the kit are made of high quality multimedia material designed to allow maximum airflow to your engine while providing effective filtration.  These filters are engineered with multiple layers of filtration media, including a high-flowing synthetic fiber layer that captures even the smallest particles, while allowing for maximum airflow to the engine. The ARM Dry Filters help to ensure that your engine has the most airflow available while being protected from harmful contaminants. The total surface area of the ARM N63TU3 Air Filters is 145 cu. in. each, making the total combined surface area of both filters 290 cu. in.


N63B N63TU3 Intake

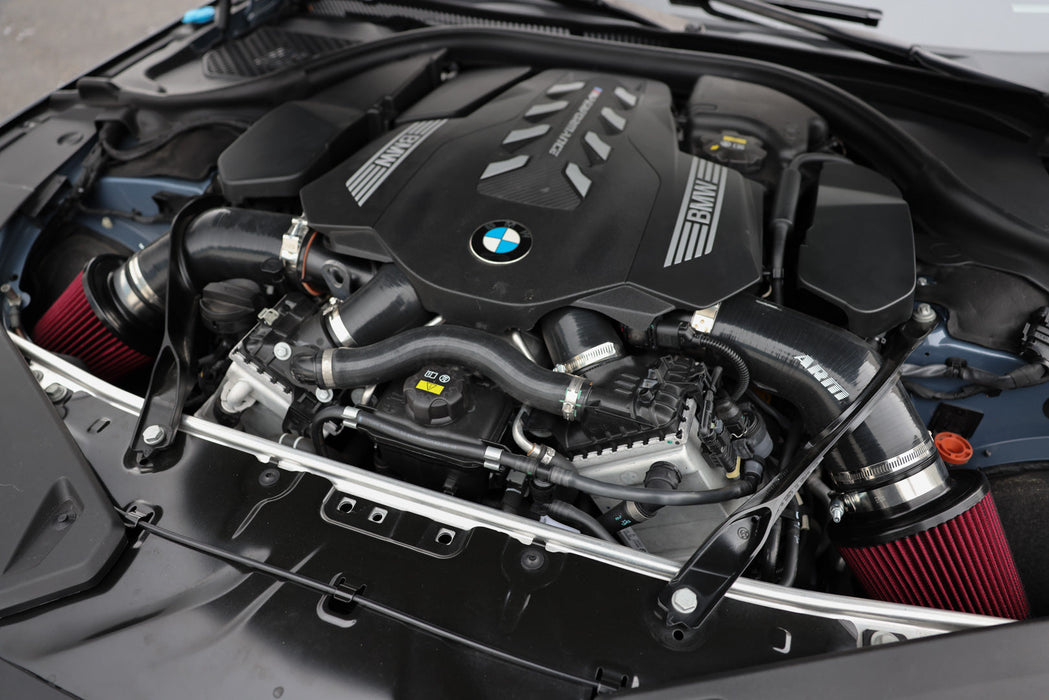

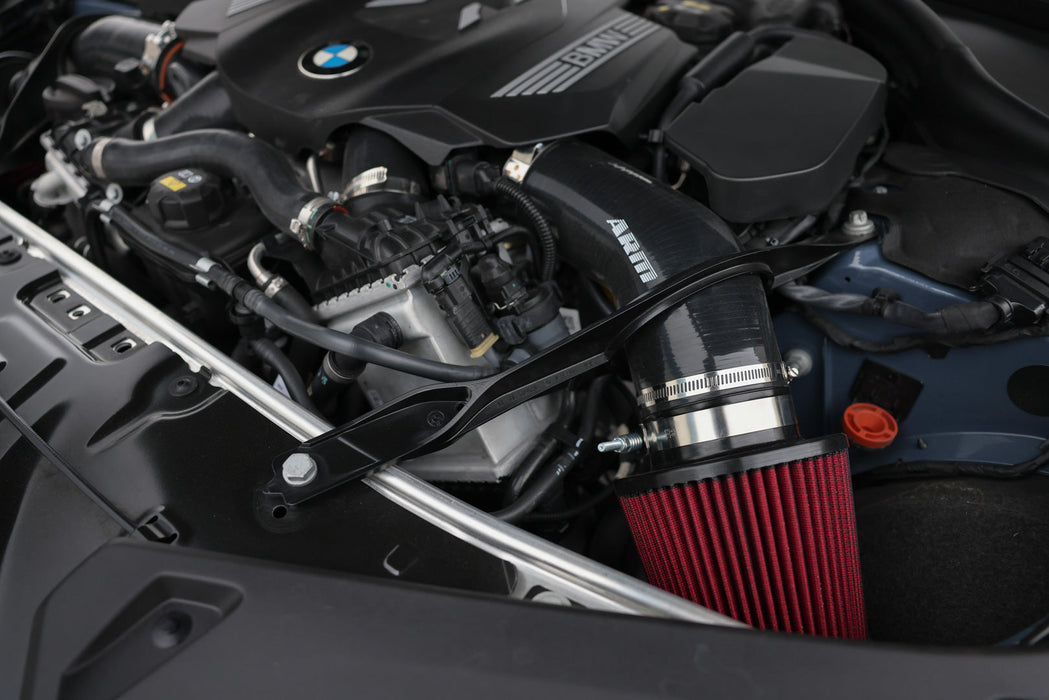

The ARM N63TU3 Intake is designed to keep the filters as far away from engine heat as possible. The filters are positioned at the front of the engine bay, where it can take advantage of the fresh air that is directed into the engine compartment from the OEM air ducts just below where they are positioned.

N63B N63TU3 Intake

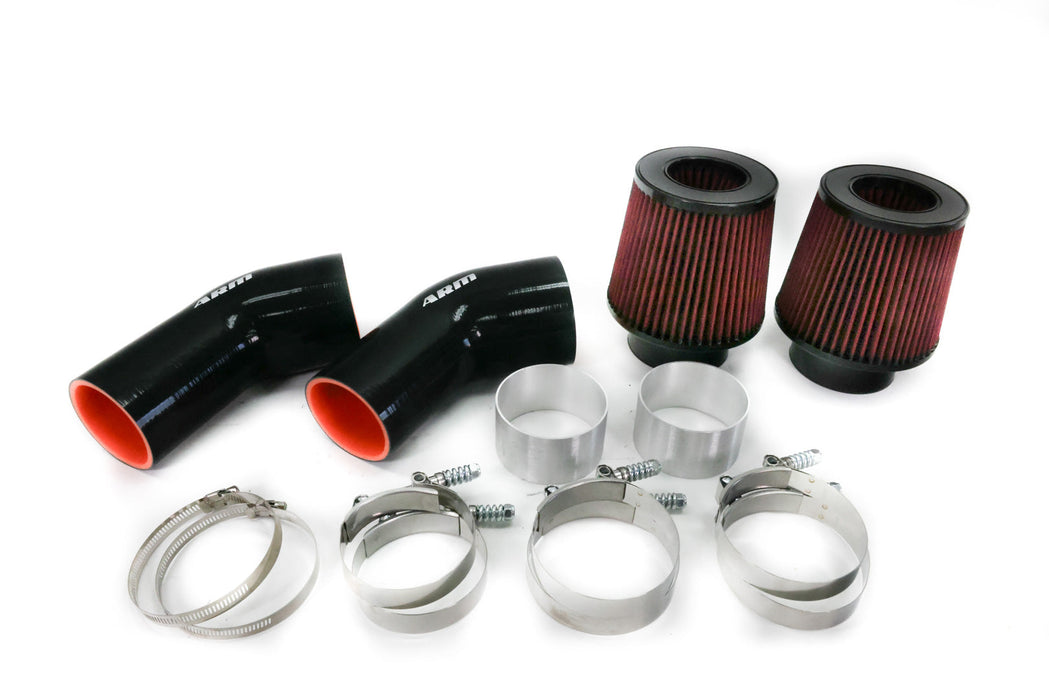

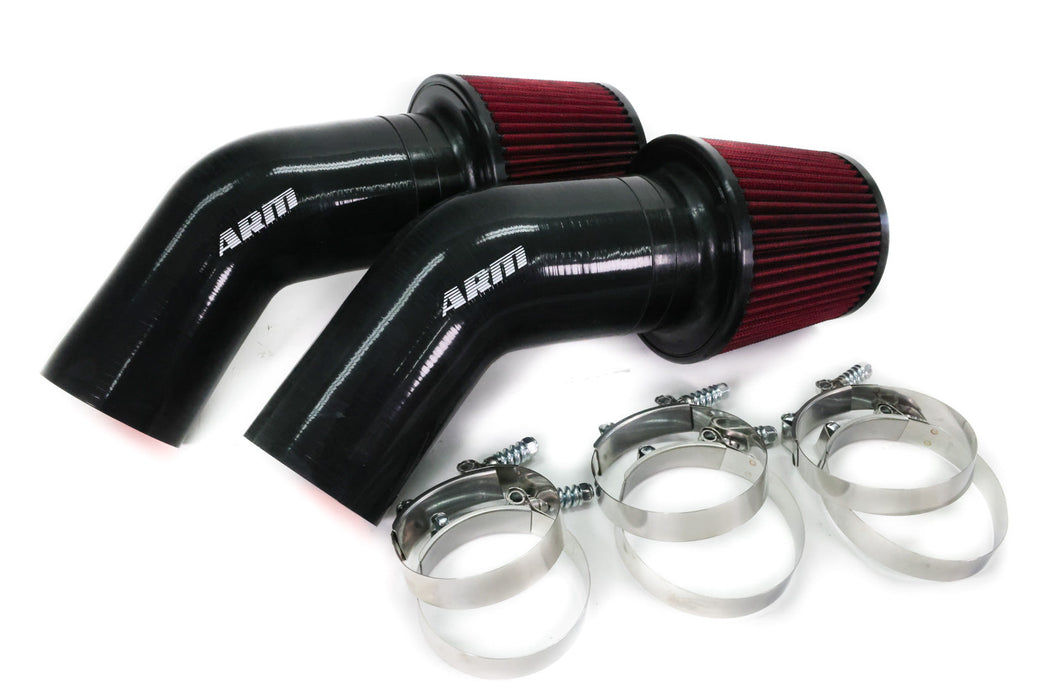

IN THE BOX

• 2x Silicone Couplers
• 2x Dry Air Filters

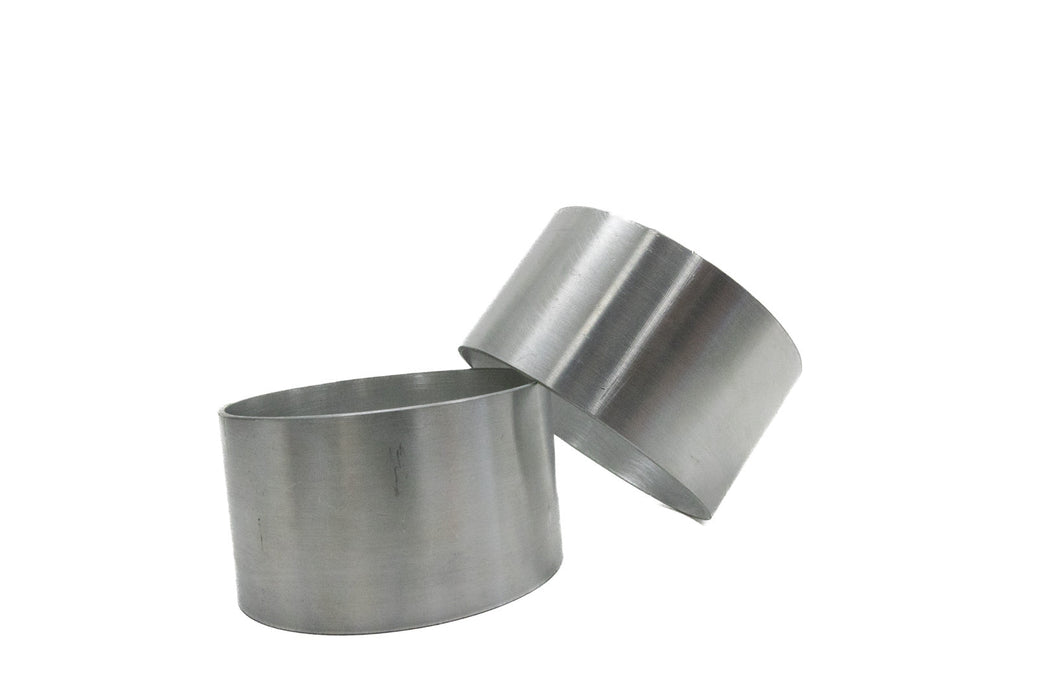

• 2x Aluminum Joiners
• 4x T-Bolt Clamps
• 2x Worm Clamps



FITMENT GUIDE

The ARM N63TU3 Intake will fit the models listed below with the N63TU3 (N63B) engine.  Your engine should look like the image below.  If it doesn't please check out our "WHAT TYPE OF N63 DO YOU HAVE IN YOUR BMW?" blog post to see which version you have.

N63B/N63TU3 Intake
If you are looking for the original N63/N63TU or N63TUR/N63TU2 upgraded intake systems you can find them at the links below:

N63 INTAKE
N63TU2 INTAKE

Make Chassis Model Engine
BMW F90 M5 S63 4.4L
BMW F90 M5 Competition S63 4.4L
BMW F90 M5CS S63 4.4L
BMW F92 M8 S63 4.4L
BMW F92 M8 Competition S63 4.4L
BMW F93 M8 S63 4.4L
BMW F93 M8 Competition S63 4.4L
BMW G30
M550i
N63B/TU3 4.4L
BMW G30 M550i xDrive N63B/TU3 4.4L
BMW G14
850i / xDrive
N63B/TU3 4.4L
BMW G15
850i / xDrive
N63B/TU3 4.4L
BMW G16
850i / xDrive N63B/TU3 4.4L
BMW G11 750i / xDrive N63B/TU3 4.4L
BMW G12 750i / xDrive N63B/TU3 4.4L


ARM MOTORSPORTS LIFETIME WARRANTY

Every ARM Motorsports product is backed by a lifetime warranty which is automatically issued at the time of purchase. Your warranty protects you against any defects in craftsmanship or fitment. The warranty entitles you to a replacement unit.
*Kits are made-to-order. As we do not physically keep everything in stock, kits have a ship time of about 3 weeks after your payment has processed. This is common for the N54 Single Turbo market if you look on other websites.

Unleash the full potential of your N54 engine with our Top Mount Single Turbo Kit, engineered for seamless fitment, durability, and big power capability. Designed to support 800whp+, this kit is the ultimate upgrade for those who demand power without compromise.

High-Quality 304 Stainless Steel Manifold

Crafted from 304 stainless steel, the manifold offers superior heat resistance, corrosion protection, and structural integrity. Unlike lower-grade materials, 304 stainless ensures long-term reliability under extreme heat and boost pressures, making it ideal for high-performance applications. The precision-engineered tubular design is optimized for maximum exhaust flow, reducing backpressure and enhancing turbo efficiency. This manifold is similar to ones being sold on AliExpress and other overseas markets. However, we've partnered directly with the manufacturer to provide these manifolds in the highest of quality. Unlike those that are drop-shipping similar manifolds from unreliable sources. You are purchasing directly from the source.

Industry-Leading Fitment

Fitment has been meticulously tested and compared against all major top-mount kits on the market, and ours ranks among the best. The compact yet efficient design ensures hassle-free installation, eliminating clearance issues that plague other kits.

Smart Wastegate Placement

No more tearing the entire kit apart just to make a simple wastegate adjustment. Our strategically placed wastegate design allows for quick, easy access, so you can fine-tune your setup without unnecessary downtime.

Built for Serious Power

With the ability to support 800whp+, this kit is designed for enthusiasts pushing their N54 to the limit. Whether you’re chasing high-speed pulls or dominating the track, this setup provides the boost response, reliability, and power potential you need.

So what's included?

(x1) Top Mount T4 Manifold
(x1) Relocated Coolant Waterpipe
(x2) Coolant Port Block Off Plugs
(1x) -4 Oil Feed Adapter
(1x) Rear Oil Drain Freeze Plug
(1x) 5/8" ID Oil Drain Hose
(1x) 5/8" Oil Drain Barb
(x1) -4 Stainless Steel Oil Feed Hose + Adapter
(x16) OEM Exhaust Manifold Studs
(x16) OEM Reduced Length Exhaust Manifold Nuts
(x6) Elring Exhaust Manifold Gaskets
(1x) T4 Turbo Blanket
(x3) O-Rings
(1x) Turbo-To-Intercooler Piping
(x1) Turbo (Optional)
(x1) 3" V-Band Hood Exit (Optional)
(x1) 44mm Wastegate (Optional)
